Die Number | Description | kg/m | Perimeter(mm) | CCD |
---|---|---|---|---|
MV40047 | 28 CASEMENT EQUAL LEG | 0.428 | 263.524 | 54 |
V40003 | 28 CASEMENT EQUAL LEG | 0.448 | 264.162 | 54 |
V40001 | 28 CASEMENT GLAZING BEAD | 0.158 | 107.384 | 27 |
MV40052 | 28 CASEMENT GLAZING BEAD (4mm) | 0.152 | 106.433 | 27 |
MVH4059 | 28 CASEMENT MULLION | 0.613 | 231.000 | 60 |

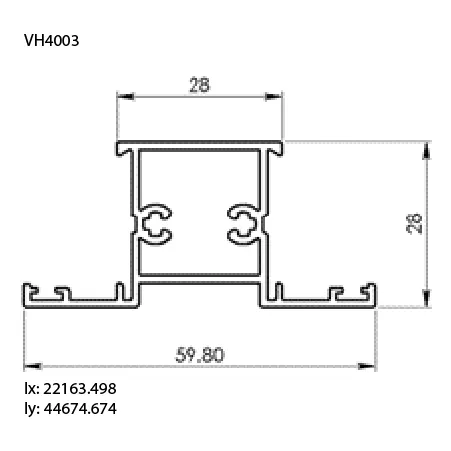

VH4003 | 28 CASEMENT MULLION | 0.614 | 231.435 | 60 |
MV40149 | 28 CASEMENT MULTI GLAZING BEAD | 0.159 | 112.450 | 27 |
VH4002 | 28 CASEMENT SASH | 0.451 | 193.915 | 54 |

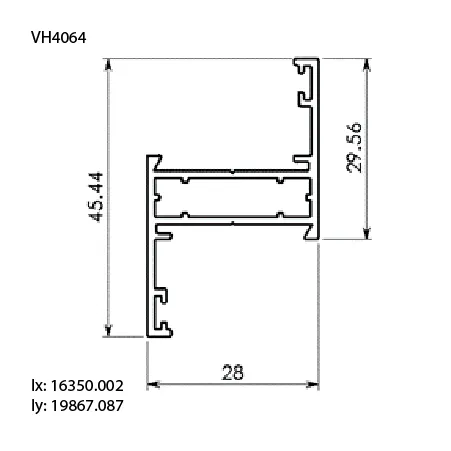

MVH4064 | 28 CASEMENT TUBULAR SASH | 0.442 | 193.219 | 54 |
V40008 | 30.5 CASEMENT EQUAL LEG | 0.453 | 271.047 | 57 |

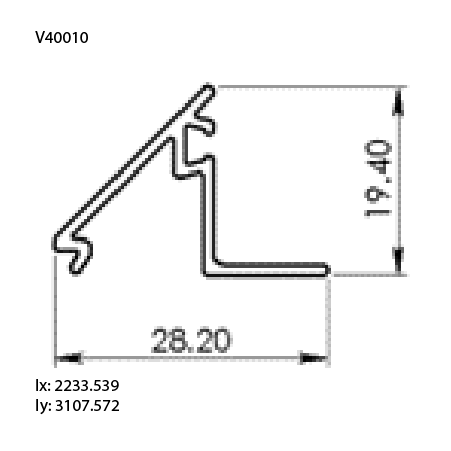

V40010 | 30.5 CASEMENT GLAZING BEAD | 0.185 | 119.089 | 29 |
VH4006 | 30.5 CASEMENT SASH | 0.487 | 200.431 | 57 |
VH4010 | 34 CASEMENT COUPLING MULLION | 0.568 | 170.568 | 56 |
V40011 | 34 CASEMENT EQUAL LEG | 0.559 | 276.568 | 56 |
V40013 | 34 CASEMENT FIXING LUG | 0.624 | 233.583 | 81 |

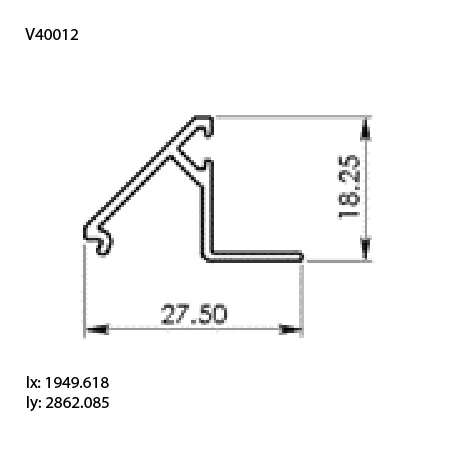

V40012 | 34 CASEMENT GLAZING BEAD | 0.173 | 109.762 | 29 |
VH4011 | 34 CASEMENT HIGH RISE MULLION | 1.178 | 323.343 | 74 |
VH4009 | 34 CASEMENT MULLION | 0.775 | 252.941 | 60 |
VH4008 | 34 CASEMENT SASH | 0.596 | 220.495 | 57 |
V40002 | CORNER CLEAT | 0.720 | 172.328 | 60 |
V40095 | CORNER CLEAT | 0.627 | 231.631 | 55 |
V40217 | CORNER CLEAT - OSBORNE | 0.751 | 193.230 | 55 |
V40004 | MULTI FIXING LUG | 0.489 | 238.945 | 93 |
V40009 | TWIST LUG | 0.558 | 205.278 | 67 |
